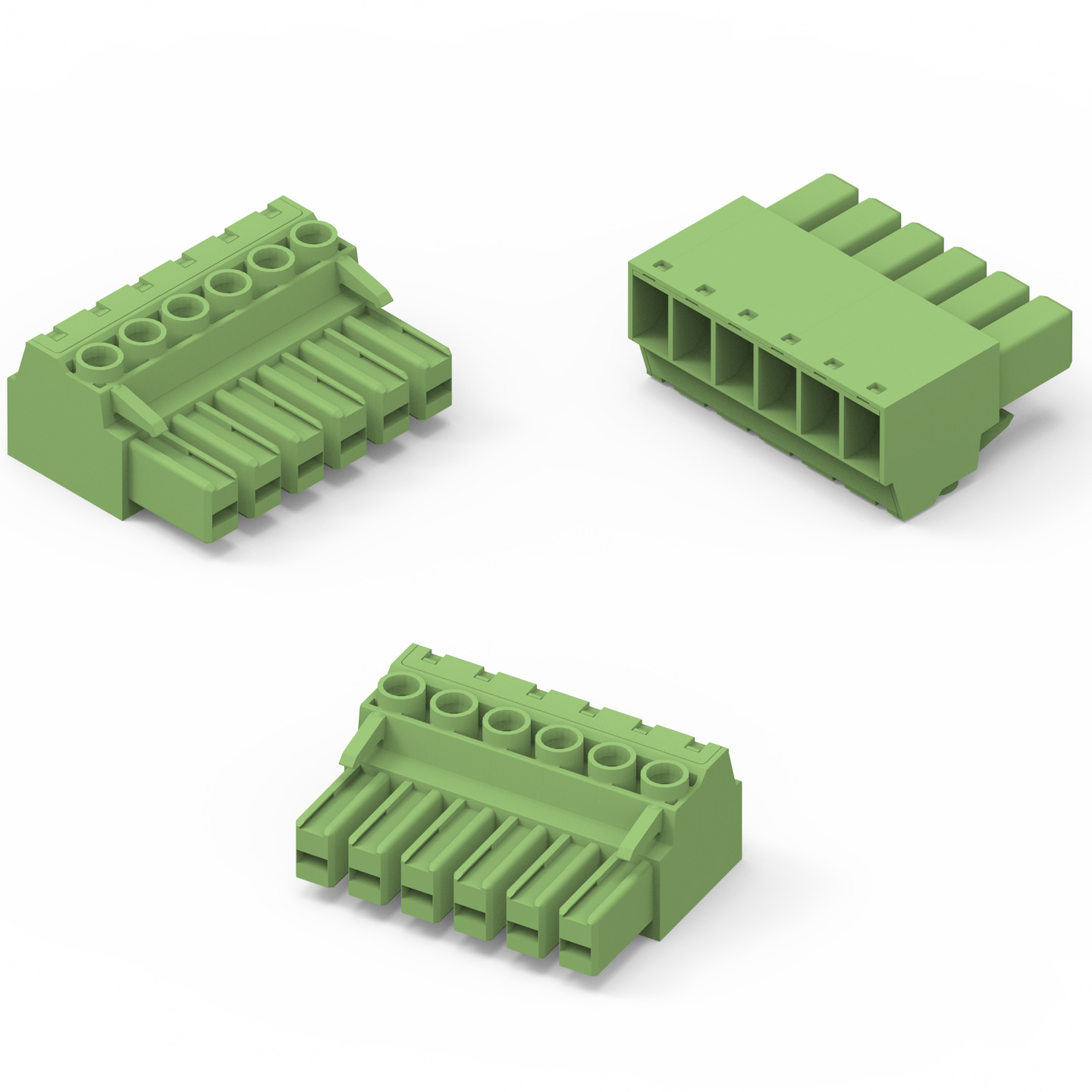

WR-TBL Series 3764 - Plug with Rising Cage Clamp 7.62mm pitch - Vertical cable entry - Cable

General Information
Operating Temperature	-30 °C up to +160 °C
Pitch	7.62 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Contact Material	Copper Alloy
Contact Plating	Tin over Nickel
Cage Material	Copper Alloy
Cage Plating	Nickel; nickel
Terminal Screw Material	Steel
Terminal Screw Plating	Zinc

Electrical Properties
I_R	41 A
I_R[cULus]	41 A
Working Voltage	600 V (AC)
Working Voltage [cULus]	600 V (AC)
Withstanding Voltage	2200 V (AC)
Contact Resistance	5 mΩ

Wire Properties
Solid Wire Section (AWG)	24 to 8 (AWG)
Solid Wire Section (Metric)	0.75 to 10 (mm²)
Stranded Wire Section (AWG)	24 to 8 (AWG)
Stranded Wire Section (Metric)	0.75 to 10 (mm²)

Certification
cULus Approval	E150931
Glow Wire Approval	Conform [IEC 60335-1]

Application Notes

Products

	Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Samples
	691376400002	SPEC	3 files CAD files ZIP 3D Downloads_3D_ConTBL3_691376400002 (rev1).pdf \| 312.3 KB IGS Downloads_IGS_ConTBL3_691376400002 (rev1).igs \| 5.4 MB STP Downloads_STP_ConTBL3_691376400002 (rev1).stp \| 1.4 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	Plug with Rising Cage Clamp	Cable	No	Vertical	24 to 8 (AWG) 0.75 to 10 (mm²)
	691376400003	SPEC	3 files CAD files ZIP 3D Downloads_3D_ConTBL3_691376400003 (rev1).pdf \| 312.5 KB IGS Downloads_IGS_ConTBL3_691376400003 (rev1).igs \| 5.4 MB STP Downloads_STP_ConTBL3_691376400003 (rev1).stp \| 1.4 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	Plug with Rising Cage Clamp	Cable	No	Vertical	24 to 8 (AWG) 0.75 to 10 (mm²)
	691376400004	SPEC	3 files CAD files ZIP 3D Downloads_3D_ConTBL3_691376400004 (rev1).pdf \| 312.7 KB IGS Downloads_IGS_ConTBL3_691376400004 (rev1).igs \| 5.4 MB STP Downloads_STP_ConTBL3_691376400004 (rev1).stp \| 1.4 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	Plug with Rising Cage Clamp	Cable	No	Vertical	24 to 8 (AWG) 0.75 to 10 (mm²)
	691376400005	SPEC	3 files CAD files ZIP 3D Downloads_3D_ConTBL3_691376400005 (rev1).pdf \| 312.9 KB IGS Downloads_IGS_ConTBL3_691376400005 (rev1).igs \| 5.4 MB STP Downloads_STP_ConTBL3_691376400005 (rev1).stp \| 1.4 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	Plug with Rising Cage Clamp	Cable	No	Vertical	24 to 8 (AWG) 0.75 to 10 (mm²)
	691376400006	SPEC	3 files CAD files ZIP 3D Downloads_3D_ConTBL3_691376400006 (rev1).pdf \| 313.1 KB IGS Downloads_IGS_ConTBL3_691376400006 (rev1).igs \| 5.4 MB STP Downloads_STP_ConTBL3_691376400006 (rev1).stp \| 1.4 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	Plug with Rising Cage Clamp	Cable	No	Vertical	24 to 8 (AWG) 0.75 to 10 (mm²)

	Order Code	Datasheet
	691376400002	SPEC
	691376400003	SPEC
	691376400004	SPEC
	691376400005	SPEC
	691376400006	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Samples

Mates with

WR-TBL Adhesive Marker Card Horizontally Printed

WR-TBL Series 3754 - PCB Header 7.62mm pitch - Upsidedown Horizontal cable entry - THT

WR-TBL Series 3754 - PCB Header 7.62mm pitch - Horizontal cable entry - THT

WR-TBL Series 3754 - PCB Header 7.62mm pitch - Vertical cable entry - THT
