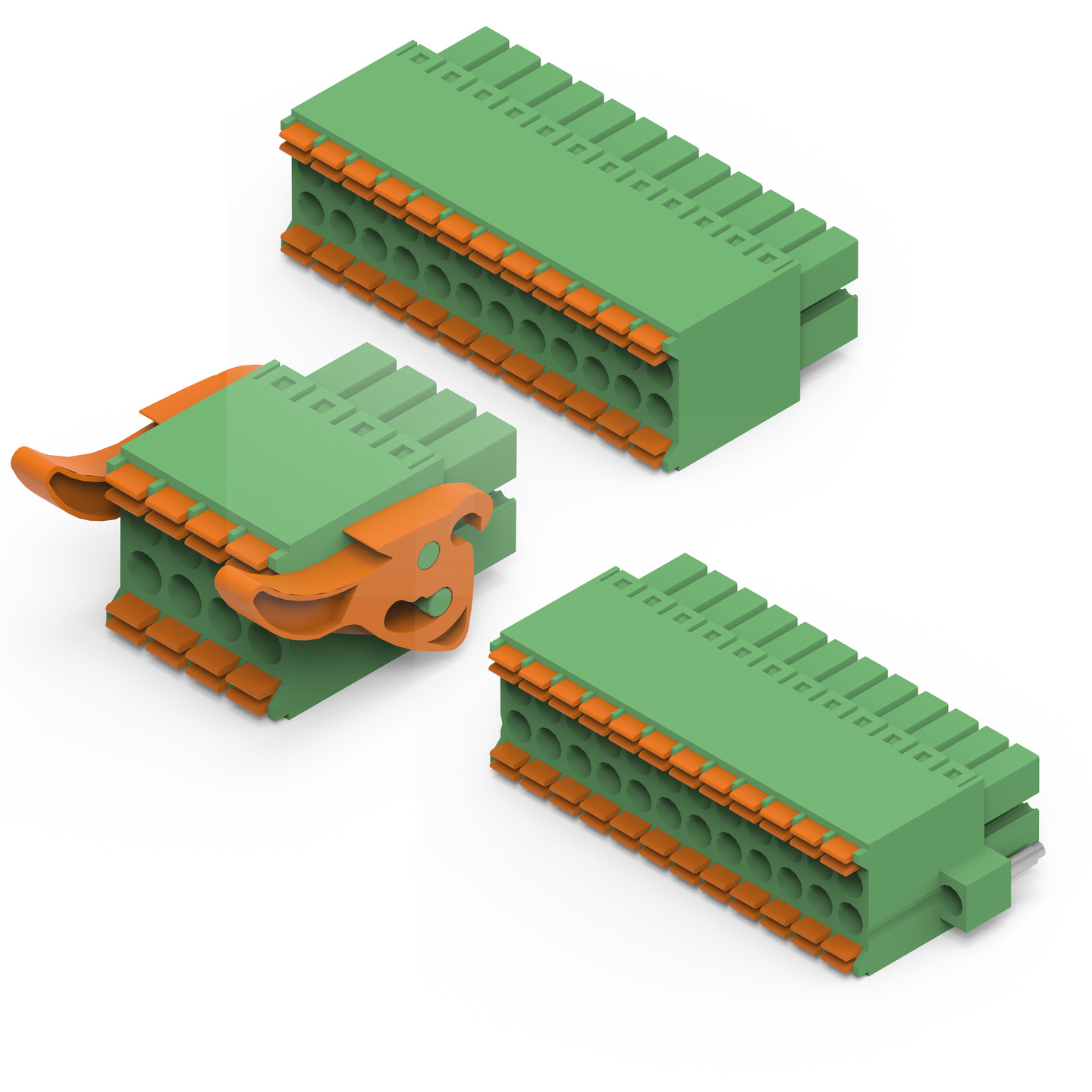

WR-TBL Plug Screwless Push In 3.50mm pitch - Dual Row Vertical cable entry - Cable | Electromechanical Components

	Size	Mount
NEW	Vertical	Cable
NEW	Vertical w/ flanges	Cable
NEW	Vertical w/ operating lever	Cable

Characteristics

Rated Current: 8A
Working Voltage: 300V
Operating temperature: -40°C up to +115°C
UL approval: E315414
UL 94-V0

Applications

Industrial

Application Notes

Other polarities, plastic housing color and printings are possible. Please contact your local sales contact if you are interested in this variant.

Products

All

Vertical

Vertical w/ flanges

Vertical w/ operating lever

Order Code	Datasheet	Downloads	Status	Polarity	Type	Insulator Material	I_R (A)	Working Voltage (V (AC))	Withstanding Voltage (V (AC))
691379100004	SPEC	3 files CAD files ZIP 3D 69137910004_3D (rev1).pdf \| 276.6 KB IGS 69137910004 (rev1).igs \| 3 MB STP 69137910004 (rev1).stp \| 687.5 KB Download all 3 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	4	Vertical	PA66	8	300	1600
691379130004	SPEC	3 files CAD files ZIP 3D 69137913004_3D (rev1).pdf \| 341.9 KB IGS 69137913004 (rev1).iges \| 3.3 MB STP 69137913004 (rev1).stp \| 725.2 KB Download all 3 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	4	Vertical	PA66	8	300	1600
691379180004	SPEC	3 files CAD files ZIP 3D 69137918004_3D (rev1).pdf \| 360.2 KB IGS 69137918004 (rev1).iges \| 3.8 MB STP 69137918004 (rev1).stp \| 853.6 KB Download all 3 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	4	Vertical	PA66	8	300	1600
691379100006	SPEC	3 files CAD files ZIP 3D 691379100006_3D (rev1).pdf \| 459.6 KB IGS 69137913006 (rev1).igs \| 4 MB STP 691379100006 (rev1).stp \| 1.1 MB Download all 3 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	6	Vertical	PA66	8	300	1600
691379130006	SPEC	3 files CAD files ZIP 3D 69137913006_3D (rev1).pdf \| 432.3 KB IGS 69137913006 (rev1).iges \| 4.3 MB STP 69137913006 (rev1).stp \| 946 KB Download all 3 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	6	Vertical	PA66	8	300	1600
691379180006	SPEC	3 files CAD files ZIP 3D 69137918006_3D (rev1).pdf \| 444.2 KB IGS 69137918006 (rev1).iges \| 4.8 MB STP 69137918006 (rev1).stp \| 1.1 MB Download all 3 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	6	Vertical	PA66	8	300	1600
691379100008	SPEC	3 files CAD files ZIP 3D 69137910008_3D (rev1).pdf \| 459.6 KB IGS 69137910008 (rev1).igs \| 5 MB STP 69137910008 (rev1).stp \| 1.1 MB Download all 3 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	8	Vertical	PA66	8	300	1600
691379130008	SPEC	3 files CAD files ZIP 3D 69137913008_3D (rev1).pdf \| 520.8 KB IGS 69137913008 (rev1).iges \| 5.2 MB STP 69137913008 (rev1).stp \| 1.2 MB Download all 3 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	8	Vertical	PA66	8	300	1600
691379180008	SPEC	3 files CAD files ZIP 3D 69137918008_3D (rev1).pdf \| 539.3 KB IGS 69137918008 (rev1).iges \| 5.8 MB STP 69137918008 (rev1).stp \| 1.3 MB Download all 3 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	8	Vertical	PA66	8	300	1600
691379100010	SPEC	3 files CAD files ZIP 3D 69137910010_3D (rev1).pdf \| 557.4 KB IGS 69137910010 (rev1).igs \| 6 MB STP 69137910010 (rev1).stp \| 1.3 MB Download all 3 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	10	Vertical	PA66	8	300	1600
691379130010	SPEC	3 files CAD files ZIP 3D 69137913010_3D (rev1).pdf \| 616.4 KB IGS 69137913010 (rev1).iges \| 6.2 MB STP 69137913010 (rev1).stp \| 1.4 MB Download all 3 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	10	Vertical	PA66	8	300	1600
691379180010	SPEC	3 files CAD files ZIP 3D 69137918010_3D (rev1).pdf \| 634.5 KB IGS 69137918010 (rev1).iges \| 6.8 MB STP 69137918010 (rev1).stp \| 1.6 MB Download all 3 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	10	Vertical	PA66	8	300	1600
691379100012	SPEC	3 files CAD files ZIP 3D 69137910012_3D (rev1).pdf \| 648.9 KB IGS 69137910012 (rev1).igs \| 7 MB STP 69137910012 (rev1).stp \| 1.6 MB Download all 3 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	12	Vertical	PA66	8	300	1600
691379130012	SPEC	3 files CAD files ZIP 3D 69137913012_3D (rev1).pdf \| 682.7 KB IGS 69137913012 (rev1).iges \| 7.2 MB STP 69137913012 (rev1).stp \| 1.6 MB Download all 3 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	12	Vertical	PA66	8	300	1600
691379180012	SPEC	3 files CAD files ZIP 3D 69137918012_3D (rev1).pdf \| 701.2 KB IGS 69137918012 (rev1).iges \| 7.7 MB STP 69137918012 (rev1).stp \| 1.8 MB Download all 3 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	12	Vertical	PA66	8	300	1600
691379100014	SPEC	3 files CAD files ZIP 3D 69137910014_3D (rev1).pdf \| 713.7 KB IGS 69137910014 (rev1).igs \| 8 MB STP 69137910014 (rev1).stp \| 1.8 MB Download all 3 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	14	Vertical	PA66	8	300	1600
691379130014	SPEC	3 files CAD files ZIP 3D 69137913014_3D (rev1).pdf \| 758.2 KB IGS 69137913014 (rev1).iges \| 8.2 MB STP 69137913014 (rev1).stp \| 1.8 MB Download all 3 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	14	Vertical	PA66	8	300	1600
691379180014	SPEC	3 files CAD files ZIP 3D 69137918014_3D (rev1).pdf \| 770.8 KB IGS 69137918014 (rev1).iges \| 8.7 MB STP 69137918014 (rev1).stp \| 2 MB Download all 3 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	15	Vertical	PA66	8	300	1600
691379100016	SPEC	3 files CAD files ZIP 3D 69137910016_3D (rev1).pdf \| 794.3 KB IGS 69137910016 (rev1).igs \| 9 MB STP 69137910016 (rev1).stp \| 2 MB Download all 3 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	16	Vertical	PA66	8	300	1600
691379130016	SPEC	3 files CAD files ZIP 3D 69137913016_3D (rev1).pdf \| 834.6 KB IGS 69137913016 (rev1).iges \| 9.2 MB STP 69137913016 (rev1).stp \| 2 MB Download all 3 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	16	Vertical	PA66	8	300	1600
691379180016	SPEC	3 files CAD files ZIP 3D 69137918016_3D (rev1).pdf \| 849.1 KB IGS 69137918016 (rev1).iges \| 9.8 MB STP 69137918016 (rev1).stp \| 2.3 MB Download all 3 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	16	Vertical	PA66	8	300	1600
691379100018	SPEC	3 files CAD files ZIP 3D 69137910018_3D (rev1).pdf \| 868.1 KB IGS 69137910018 (rev1).igs \| 10 MB STP 69137910018 (rev1).stp \| 2.2 MB Download all 3 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	18	Vertical	PA66	8	300	1600
691379130018	SPEC	3 files CAD files ZIP 3D 69137913018_3D (rev1).pdf \| 914.7 KB IGS 69137913018 (rev1).iges \| 10.2 MB STP 69137913018 (rev1).stp \| 2.3 MB Download all 3 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	18	Vertical	PA66	8	300	1600
691379180018	SPEC	3 files CAD files ZIP 3D 69137918018_3D (rev1).pdf \| 929.9 KB IGS 69137918018 (rev1).iges \| 10.8 MB STP 69137918018 (rev1).stp \| 2.5 MB Download all 3 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	18	Vertical	PA66	8	300	1600
691379100020	SPEC	3 files CAD files ZIP 3D 69137910020_3D (rev1).pdf \| 938.6 KB IGS 69137910020 (rev1).igs \| 11 MB STP 69137910020 (rev1).stp \| 2.5 MB Download all 3 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	20	Vertical	PA66	8	300	1600
691379130020	SPEC	3 files CAD files ZIP 3D 69137913020_3D (rev1).pdf \| 999.7 KB IGS 69137913020 (rev1).iges \| 11.2 MB STP 69137913020 (rev1).stp \| 2.5 MB Download all 3 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	20	Vertical	PA66	8	300	1600
691379180020	SPEC	3 files CAD files ZIP 3D 69137918020_3D (rev1).pdf \| 1016.3 KB IGS 69137918020 (rev1).iges \| 11.7 MB STP 69137918020 (rev1).stp \| 2.8 MB Download all 3 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	20	Vertical	PA66	8	300	1600
691379100024	SPEC	3 files CAD files ZIP 3D 69137910024_3D (rev1).pdf \| 1.1 MB IGS 69137910024 (rev1).igs \| 13 MB STP 69137910024 (rev1).stp \| 2.9 MB Download all 3 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	24	Vertical	PA66	8	300	1600
691379130024	SPEC	3 files CAD files ZIP 3D 69137913024_3D (rev1).pdf \| 1.1 MB IGS 69137913024 (rev1).iges \| 13.2 MB STP 69137913024 (rev1).stp \| 2.9 MB Download all 3 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	24	Vertical	PA66	8	300	1600
691379180024	SPEC	3 files CAD files ZIP 3D 69137918024_3D (rev1).pdf \| 1.1 MB IGS 69137918024 (rev1).iges \| 13.8 MB STP 69137918024 (rev1).stp \| 3.3 MB Download all 3 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	24	Vertical	PA66	8	300	1600

	Order Code	Datasheet
	691379100004	SPEC
	691379130004	SPEC
	691379180004	SPEC
	691379100006	SPEC
	691379130006	SPEC
	691379180006	SPEC
	691379100008	SPEC
	691379130008	SPEC
	691379180008	SPEC
	691379100010	SPEC
	691379130010	SPEC
	691379180010	SPEC
	691379100012	SPEC
	691379130012	SPEC
	691379180012	SPEC
	691379100014	SPEC
	691379130014	SPEC
	691379180014	SPEC
	691379100016	SPEC
	691379130016	SPEC
	691379180016	SPEC
	691379100018	SPEC
	691379130018	SPEC
	691379180018	SPEC
	691379100020	SPEC
	691379130020	SPEC
	691379180020	SPEC
	691379100024	SPEC
	691379130024	SPEC
	691379180024	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	Polarity	Type	Insulator Material	I_R (A)	Working Voltage (V (AC))	Withstanding Voltage (V (AC))	Samples

Tailored to your needs

Custom & Standard Terminal Blocks

Tailored to your needs

Custom & Standard Terminal Blocks

In addition to a portfolio of more than 2000 standard articles, Würth Elektronik offers various possibilities to tailor the products to your specific requirements. Personalized modifications of standard terminal blocks are available for small to medium quantities within a few days as a special service. Fully customized products in high quantities are possible within a few weeks.In house design, tooling and prototyping ensures all customer specific requirements are met.
