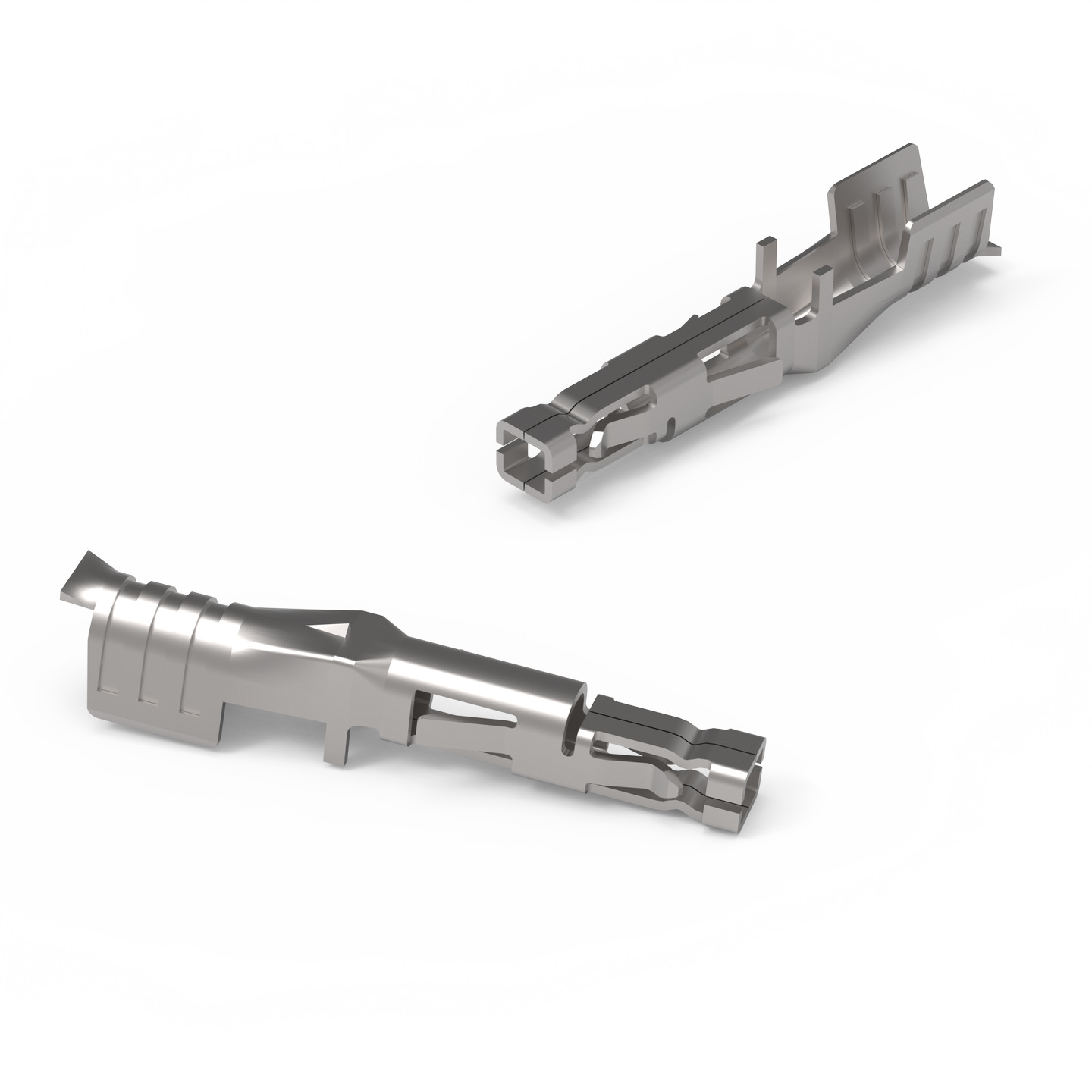

WR-MPC5 5.70 mm Female Crimp Contact

Characteristics

Rated Current: 26 A
Working Voltage: 600 V
Operating Temperature: -40 °C up to +105 °C
Durability: 25 Mating cycles

Applications

Industrial
Home Appliances
Telecommunication

Material Properties
Contact Material	Copper Alloy
Contact Plating	Tin over Nickel

General Information
Type	Crimp Terminal
Operating Temperature	-40 °C up to +105 °C
Durability	25 Mating cycles

Electrical Properties
I_R	26 A
Working Voltage	600 V (AC)
Withstanding Voltage	2200 V (AC)
Contact Resistance	2 mΩ

Wire Properties
Stranded Wire Section (AWG)	12 (AWG); 14 to 16 (AWG)

Packaging Properties
Packaging	Bag; Reel

Certification
RoHS Approval	Compliant [2011/65/EU&2015/863]

Products

Order Code	Datasheet	Downloads	Status	Gender	Type	Wire Section	Contact Plating	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Packaging	Tools	Design Kit	Samples
65730513722	SPEC	3 files CAD files ZIP 3D 3D_MPC5_65730513722 (rev1).pdf \| 224.7 KB IGS IGS_MPC5_65730513722 (rev1).igs \| 2.6 MB STP STP_MPC5_65730513722 (rev1).stp \| 526.4 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	Crimp Terminal	14 to 16 (AWG)	Tin over Nickel	26	600	2	Reel	600662401	–
65730513722DEC	SPEC	3 files CAD files ZIP 3D 3D_MPC5_65730513722DEC (rev1).pdf \| 206.5 KB IGS IGS_MPC5_65730513722DEC (rev1).igs \| 2.5 MB STP STP_MPC5_65730513722DEC (rev1).stp \| 501.6 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	Crimp Terminal	14 to 16 (AWG)	Tin over Nickel	26	600	2	Bag	–	657001
65730613722	SPEC	3 files CAD files ZIP 3D 3D_MPC5_65730613722 (rev1).pdf \| 222.3 KB IGS IGS_MPC5_65730613722 (rev1).igs \| 2.6 MB STP STP_MPC5_65730613722 (rev1).stp \| 527 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	Crimp Terminal	12 (AWG)	Tin over Nickel	26	600	2	Reel	–	–
65730613722DEC	SPEC	3 files CAD files ZIP 3D 3D_MPC5_65730613722DEC (rev1).pdf \| 204.2 KB IGS IGS_MPC5_65730613722DEC (rev1).igs \| 2.5 MB STP STP_MPC5_65730613722DEC (rev1).stp \| 502.3 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	Crimp Terminal	12 (AWG)	Tin over Nickel	26	600	2	Bag	–	657001

Order Code	Datasheet
65730513722	SPEC
65730513722DEC	SPEC
65730613722	SPEC
65730613722DEC	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Gender	Type	Wire Section	Contact Plating	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Packaging	Tools	Design Kit	Samples

Use with

WR-MPC5 5.70 mm Female Receptacle Housing Single Row

WR-MPC5 5.70 mm Female Receptacle Housing Dual Row

WR-MPC5 5.70 mm Automatic Crimping Tool: 600657402
