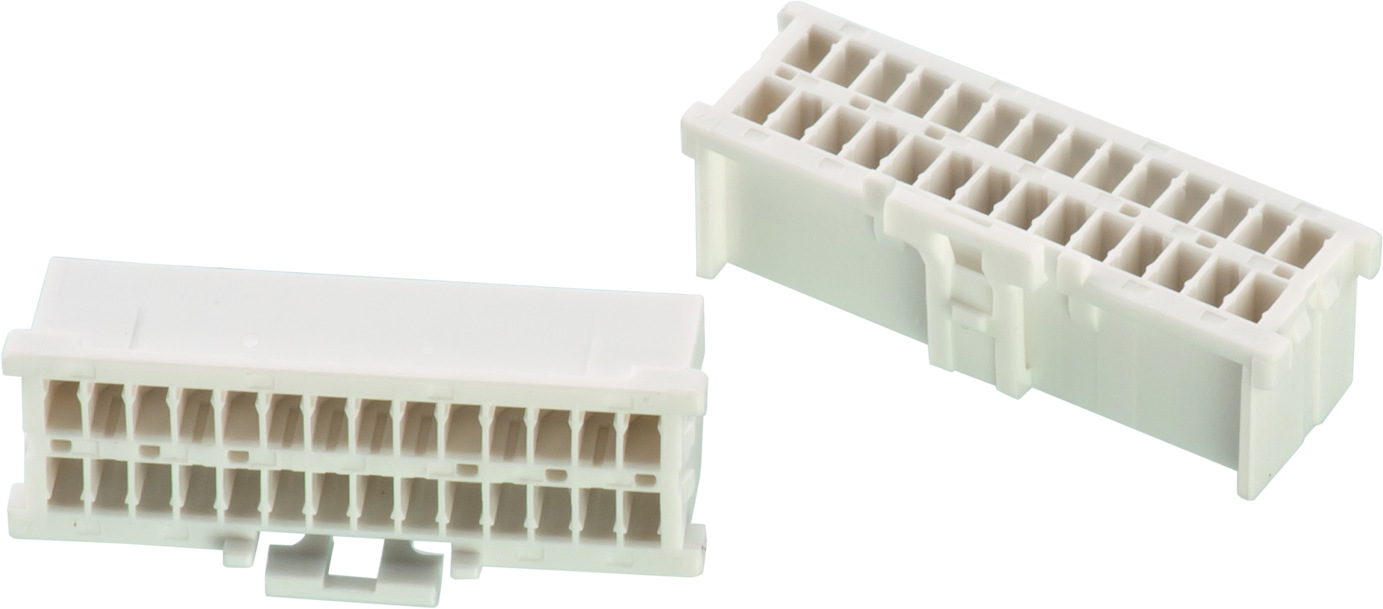

WR-WTB 2.00 mm Female Dual Row Terminal Housing w. positive locking

Material Properties
Insulator Material	Nylon 66
Insulator Flammability Rating	UL94 V-0
Insulator Color	White

General Information
Operating Temperature	-25 °C up to +85 °C
Withstanding Voltage	1000 V (AC)
R_ISO	1000 MΩ
Pitch	2 mm
Gender	Female
Type	Terminal Housing

Certification
cULus Approval	E323964

Packaging Properties
Packaging	Bag

Products

Order Code	Datasheet	Downloads	Status	Gender	Pins (pcs)	Type	Packaging	Design Kit	Samples
624008213322	SPEC	3 files CAD files ZIP 3D 624008213322_1 (rev1).pdf \| 138.3 KB IGS 624008213322 (rev1).igs \| 1.7 MB STP 624008213322 (rev1).stp \| 736.5 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	8	Terminal Housing	Bag	645001
624010213322	SPEC	3 files CAD files ZIP 3D 624010213322_1 (rev1).pdf \| 156 KB IGS 624010213322 (rev1).igs \| 2.1 MB STP 624010213322 (rev1).stp \| 881.4 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	10	Terminal Housing	Bag	612690 645001
624012213322	SPEC	3 files CAD files ZIP 3D 624012213322_1 (rev1).pdf \| 176.7 KB IGS 624012213322 (rev1).igs \| 2.5 MB STP 624012213322 (rev1).stp \| 1 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	12	Terminal Housing	Bag	645001
624014213322	SPEC	3 files CAD files ZIP 3D 624014213322_1 (rev1).pdf \| 193 KB IGS 624014213322 (rev1).igs \| 2.8 MB STP 624014213322 (rev1).stp \| 1.1 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	14	Terminal Housing	Bag	645001
624016213322	SPEC	3 files CAD files ZIP 3D 624016213322_1 (rev1).pdf \| 210 KB IGS 624016213322 (rev1).igs \| 3 MB STP 624016213322 (rev1).stp \| 1.3 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	16	Terminal Housing	Bag	645001
624018213322	SPEC	3 files CAD files ZIP 3D 624018213322_1 (rev1).pdf \| 226.5 KB IGS 624018213322 (rev1).igs \| 3.3 MB STP 624018213322 (rev1).stp \| 1.4 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	18	Terminal Housing	Bag	645001
624020213322	SPEC	3 files CAD files ZIP 3D 624020213322_1 (rev1).pdf \| 241.7 KB IGS 624020213322 (rev1).igs \| 3.6 MB STP 624020213322 (rev1).stp \| 1.5 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	20	Terminal Housing	Bag	645001
624022213322	SPEC	3 files CAD files ZIP 3D 624022213322_1 (rev1).pdf \| 260 KB IGS 624022213322 (rev1).igs \| 3.9 MB STP 624022213322 (rev1).stp \| 1.6 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	22	Terminal Housing	Bag	–
624024213322	SPEC	3 files CAD files ZIP 3D 624024213322_1 (rev1).pdf \| 277.1 KB IGS 624024213322 (rev1).igs \| 4.2 MB STP 624024213322 (rev1).stp \| 1.8 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	24	Terminal Housing	Bag	–
624026213322	SPEC	3 files CAD files ZIP 3D 624026213322_1 (rev1).pdf \| 293.8 KB IGS 624026213322 (rev1).igs \| 4.5 MB STP 624026213322 (rev1).stp \| 1.9 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	26	Terminal Housing	Bag	–
624028213322	SPEC	3 files CAD files ZIP 3D 624028213322_1 (rev1).pdf \| 305.5 KB IGS 624028213322 (rev1).igs \| 4.8 MB STP 624028213322 (rev1).stp \| 2 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	28	Terminal Housing	Bag	–
624030213322	SPEC	3 files CAD files ZIP 3D 624030213322_1 (rev1).pdf \| 322.3 KB IGS 624030213322 (rev1).igs \| 5.1 MB STP 624030213322 (rev1).stp \| 2.1 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	30	Terminal Housing	Bag	–
624032213322	SPEC	3 files CAD files ZIP 3D 624032213322_1 (rev1).pdf \| 338.9 KB IGS 624032213322 (rev1).igs \| 5.4 MB STP 624032213322 (rev1).stp \| 2.3 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	32	Terminal Housing	Bag	–
624034213322	SPEC	3 files CAD files ZIP 3D 624034213322_1 (rev1).pdf \| 355.2 KB IGS 624034213322 (rev1).igs \| 5.7 MB STP 624034213322 (rev1).stp \| 2.4 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	34	Terminal Housing	Bag	–
624036213322	SPEC	3 files CAD files ZIP 3D 624036213322_1 (rev1).pdf \| 372 KB IGS 624036213322 (rev1).igs \| 6 MB STP 624036213322 (rev1).stp \| 2.5 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	36	Terminal Housing	Bag	–
624038213322	SPEC	3 files CAD files ZIP 3D 624038213322_1 (rev1).pdf \| 387.9 KB IGS 624038213322 (rev1).igs \| 6.3 MB STP 624038213322 (rev1).stp \| 2.6 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	38	Terminal Housing	Bag	–
624040213322	SPEC	3 files CAD files ZIP 3D 624040213322_1 (rev1).pdf \| 403.6 KB IGS 624040213322 (rev1).igs \| 6.6 MB STP 624040213322 (rev1).stp \| 2.7 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	40	Terminal Housing	Bag	–

Order Code	Datasheet
624008213322	SPEC
624010213322	SPEC
624012213322	SPEC
624014213322	SPEC
624016213322	SPEC
624018213322	SPEC
624020213322	SPEC
624022213322	SPEC
624024213322	SPEC
624026213322	SPEC
624028213322	SPEC
624030213322	SPEC
624032213322	SPEC
624034213322	SPEC
624036213322	SPEC
624038213322	SPEC
624040213322	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Gender	Pins (pcs)	Type	Packaging	Design Kit	Samples

Use with

WR-WTB 2.00 mm Female Dual Row Crimp Contact

WR-WTB Pre-crimped wire

Tools

WR-WTB Manual Crimping Tool

WR-WTB Manual Insulation Stripper

WR-WTB Automatic Crimping Tool

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-WTB Wire-to-Board Connectors
