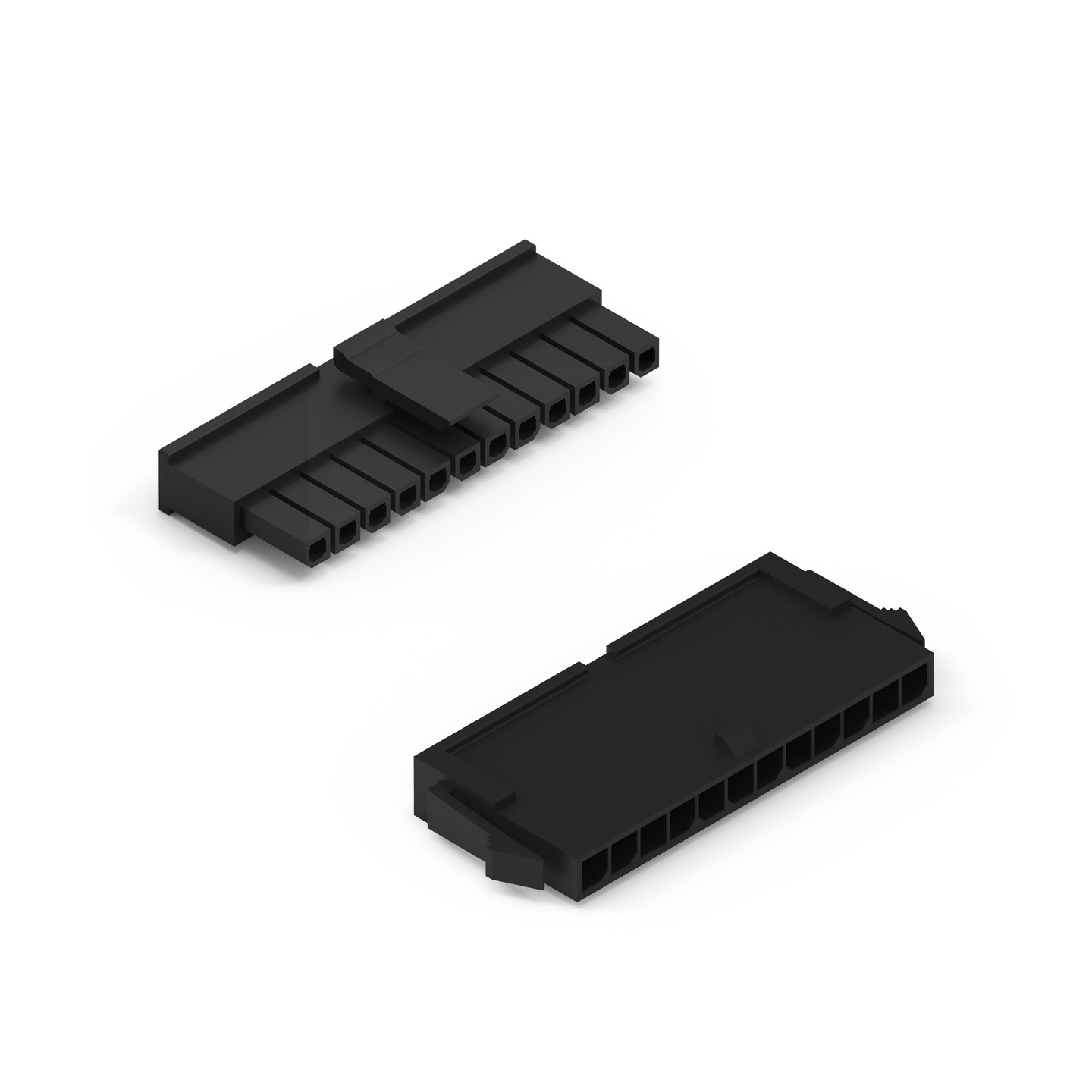

WR-MPC3 Single Row - Cable | Electromechanical Components

Characteristics

Rated Current: 5 A
Working Voltage: 250 V
Operating Temperature: -40 °C up to +105 °C
Durability: 25 Mating cycles
Pitch: 3 mm

Applications

Industrial
Home Appliances
Telecommunication

Products

All

Plug Housing

Receptacle Housing

Order Code	Datasheet	Downloads	Status	Polarity	Gender	Option	Type	Rows	PCB/Cable/Panel	Packaging	Design Kit
662002013322	SPEC	3 files CAD files ZIP 3D 662002013322 (rev1).pdf \| 49.7 KB IGS Download_IGES_662002013322 (rev1).iges \| 748.5 KB STP 662002013322 (rev1).stp \| 170.4 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	Female	–	Receptacle Housing	Single	Cable	Bag	662001
66200211822	SPEC	3 files CAD files ZIP 3D 66200211822 (rev1).pdf \| 54 KB IGS 66200211822 (rev1).iges \| 872.3 KB STP 66200211822 (rev1).stp \| 193.6 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	Male	with Panel Mounting Ears	Plug Housing	Single	Cable/Panel	Bag	662001
662003013322	SPEC	3 files CAD files ZIP 3D 662003013322 (rev1).pdf \| 59.8 KB IGS Download_IGES_662003013322 (rev1).iges \| 970.4 KB STP 662003013322 (rev1).stp \| 221.7 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	Female	–	Receptacle Housing	Single	Cable	Bag	662001
66200311822	SPEC	3 files CAD files ZIP 3D 66200311822 (rev1).pdf \| 67 KB IGS 66200311822 (rev1).iges \| 1.1 MB STP 66200311822 (rev1).stp \| 254.9 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	Male	with Panel Mounting Ears	Plug Housing	Single	Cable/Panel	Bag	662001
662004013322	SPEC	3 files CAD files ZIP 3D 662004013322 (rev1).pdf \| 69.9 KB IGS Download_IGES_662004013322 (rev1).iges \| 1.2 MB STP 662004013322 (rev1).stp \| 273.7 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	Female	–	Receptacle Housing	Single	Cable	Bag	662001
66200411822	SPEC	3 files CAD files ZIP 3D 66200411822 (rev1).pdf \| 79.9 KB IGS 66200411822 (rev1).iges \| 1.4 MB STP 66200411822 (rev1).stp \| 316.2 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	Male	with Panel Mounting Ears	Plug Housing	Single	Cable/Panel	Bag	662001
662005013322	SPEC	3 files CAD files ZIP 3D 662005013322 (rev1).pdf \| 81.4 KB IGS Download_IGES_662005013322 (rev1).iges \| 1.4 MB STP 662005013322 (rev1).stp \| 324.3 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	Female	–	Receptacle Housing	Single	Cable	Bag	662001
66200511822	SPEC	3 files CAD files ZIP 3D 66200511822 (rev1).pdf \| 93.5 KB IGS 66200511822 (rev1).iges \| 1.6 MB STP 66200511822 (rev1).stp \| 372.1 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	Male	with Panel Mounting Ears	Plug Housing	Single	Cable/Panel	Bag	662001
662006013322	SPEC	3 files CAD files ZIP 3D 662006013322 (rev1).pdf \| 95.5 KB IGS Download_IGES_662006013322 (rev1).iges \| 1.6 MB STP 662006013322 (rev1).stp \| 380.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	Female	–	Receptacle Housing	Single	Cable	Bag	662001
66200611822	SPEC	3 files CAD files ZIP 3D 66200611822 (rev1).pdf \| 109.7 KB IGS 66200611822 (rev1).iges \| 1.9 MB STP 66200611822 (rev1).stp \| 436.7 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	Male	with Panel Mounting Ears	Plug Housing	Single	Cable/Panel	Bag	662001
662007013322	SPEC	3 files CAD files ZIP 3D 662007013322 (rev1).pdf \| 106.6 KB IGS Download_IGES_662007013322 (rev1).iges \| 1.9 MB STP 662007013322 (rev1).stp \| 433.3 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	Female	–	Receptacle Housing	Single	Cable	Bag	662001
66200711822	SPEC	3 files CAD files ZIP 3D 66200711822 (rev1).pdf \| 123.7 KB IGS 66200711822 (rev1).iges \| 2.1 MB STP 66200711822 (rev1).stp \| 499.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	Male	with Panel Mounting Ears	Plug Housing	Single	Cable/Panel	Bag	662001
662008013322	SPEC	3 files CAD files ZIP 3D 662008013322 (rev1).pdf \| 118 KB IGS Download_IGES_662008013322 (rev1).iges \| 2.1 MB STP 662008013322 (rev1).stp \| 489.5 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	Female	–	Receptacle Housing	Single	Cable	Bag	662001
66200811822	SPEC	3 files CAD files ZIP 3D 66200811822 (rev1).pdf \| 136.6 KB IGS 66200811822 (rev1).iges \| 2.4 MB STP 66200811822 (rev1).stp \| 557.6 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	Male	with Panel Mounting Ears	Plug Housing	Single	Cable/Panel	Bag	662001
662009013322	SPEC	3 files CAD files ZIP 3D 662009013322 (rev1).pdf \| 130 KB IGS Download_IGES_662009013322 (rev1).iges \| 2.3 MB STP 662009013322 (rev1).stp \| 548.5 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9	Female	–	Receptacle Housing	Single	Cable	Bag	662001
66200911822	SPEC	3 files CAD files ZIP 3D 66200911822 (rev1).pdf \| 151.3 KB IGS 66200911822 (rev1).iges \| 2.7 MB STP 66200911822 (rev1).stp \| 630.4 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9	Male	with Panel Mounting Ears	Plug Housing	Single	Cable/Panel	Bag	662001
662010013322	SPEC	3 files CAD files ZIP 3D 662010013322 (rev1).pdf \| 140.4 KB IGS Download_IGES_662010013322 (rev1).iges \| 2.5 MB STP 662010013322 (rev1).stp \| 606.3 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	Female	–	Receptacle Housing	Single	Cable	Bag	662001
66201011822	SPEC	3 files CAD files ZIP 3D 66201011822 (rev1).pdf \| 164 KB IGS 66201011822 (rev1).iges \| 2.9 MB STP 66201011822 (rev1).stp \| 698 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	Male	with Panel Mounting Ears	Plug Housing	Single	Cable/Panel	Bag	662001
662011013322	SPEC	3 files CAD files ZIP 3D 662011013322 (rev1).pdf \| 151.9 KB IGS Download_IGES_662011013322 (rev1).iges \| 2.8 MB STP 662011013322 (rev1).stp \| 662.9 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	11	Female	–	Receptacle Housing	Single	Cable	Bag	662001
66201111822	SPEC	3 files CAD files ZIP 3D 66201111822 (rev1).pdf \| 178.8 KB IGS 66201111822 (rev1).iges \| 3.2 MB STP 66201111822 (rev1).stp \| 755.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	11	Male	with Panel Mounting Ears	Plug Housing	Single	Cable/Panel	Bag	662001
662012013322	SPEC	3 files CAD files ZIP 3D 662012013322 (rev1).pdf \| 162.9 KB IGS Download_IGES_662012013322 (rev1).iges \| 3 MB STP 662012013322 (rev1).stp \| 711.5 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	Female	–	Receptacle Housing	Single	Cable	Bag	662001
66201211822	SPEC	3 files CAD files ZIP 3D 66201211822 (rev1).pdf \| 191.2 KB IGS 66201211822 (rev1).iges \| 3.4 MB STP 66201211822 (rev1).stp \| 816.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	Male	with Panel Mounting Ears	Plug Housing	Single	Cable/Panel	Bag	662001

Order Code	Datasheet
662002013322	SPEC
66200211822	SPEC
662003013322	SPEC
66200311822	SPEC
662004013322	SPEC
66200411822	SPEC
662005013322	SPEC
66200511822	SPEC
662006013322	SPEC
66200611822	SPEC
662007013322	SPEC
66200711822	SPEC
662008013322	SPEC
66200811822	SPEC
662009013322	SPEC
66200911822	SPEC
662010013322	SPEC
66201011822	SPEC
662011013322	SPEC
66201111822	SPEC
662012013322	SPEC
66201211822	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Polarity	Gender	Option	Type	Rows	PCB/Cable/Panel	Packaging	Design Kit	Samples

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WR-MPC3 Micro PowerConnectors
