Infineon Technologies CY8C4745AZI-S413 | Demoboard CY8CKIT-148 Brakout Board
Programmable System-on-Chip (PSoC)
Overview
| Topology | Other Topology |
| IC revision | 05 |
Description

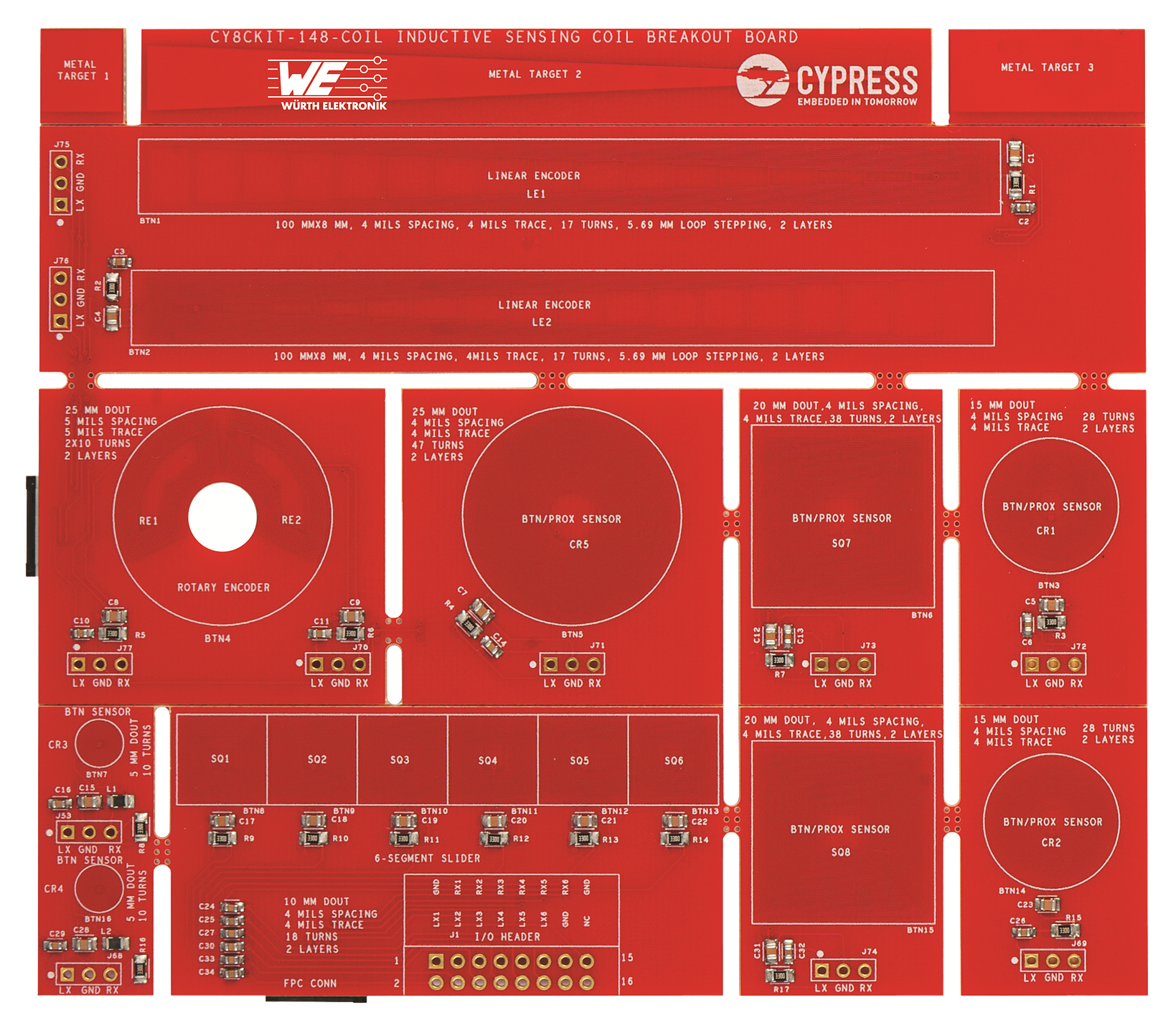

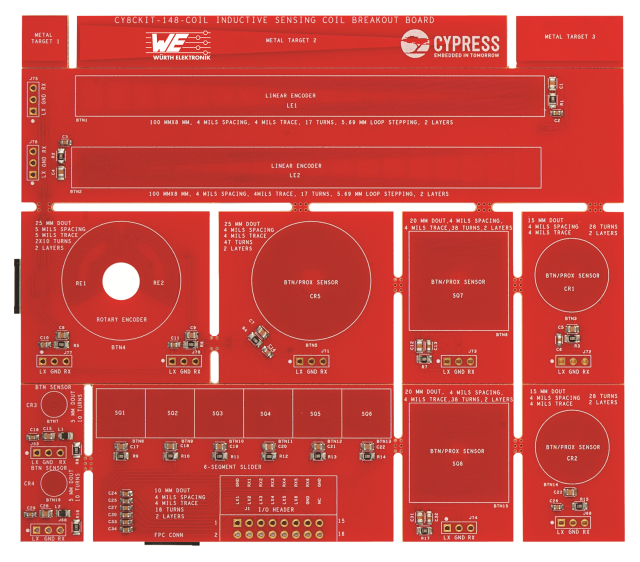

The CY8CKIT-148-COIL Inductive-Sensing Coil Breakout board is designed as an easy-to-use reference design platform. The Inductive Sensing Coil Breakout board is purpose-built to be compatible with the CY8CKIT-148 PSoC 4700S Inductive Sensing Evaluation Kit, where MagSense Inductive Sensing with various coils can be evaluated
Features
- Cypress MagSense provides superior noise immunity
- Reliably detects metal deflection under 190 nm
- MagSense software component automatically calibrates to compensate for the manufacturing variations
- Up to 16 sensors
- Cypress CapSense Sigma-Delta (CSD) provides best-in-class signal-to-noise ratio (SNR) (>5:1) and water tolerance
- Cypress-supplied software component makes capacitive sensing design easy
- Automatic hardware tuning (SmartSense™)
Typical applications
- sensing of metal objects / sensing of non-metallic objects
More information
All technical functions in detail
Products
| Order Code | Datasheet | Simulation | Downloads | Status | Product series | C | Tol. C | VR (V (DC)) | Size | Operating Temperature | Q (%) | DF (%) | RISO | Ceramic Type | L (mm) | W (mm) | H (mm) | Fl (mm) | Packaging | L (µH) | IR (mA) | IR 2 (mA) | ISAT (mA) | RDC (mΩ) | fres (MHz) | Type | Pins (pcs) | Pitch (mm) | IR (A) | Working Voltage (V) | Contact Resistance (mΩ) | Tol. R | Samples | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 885012207088 | SPEC | 9 files | Active i| Production is active. Expected lifetime: >10 years. | WCAP-CSGP MLCCs 50 V(DC) | 2.2 nF | ±10% | 50 | 0805 | -55 °C up to +125 °C | – | 2.5 | 10 GΩ | X7R Class II | 2 | 1.25 | 0.8 | 0.5 | 7" Tape & Reel | – | – | – | – | – | – | – | – | – | – | – | – | – | ||
| 885012207092 | SPEC | 9 files | Active i| Production is active. Expected lifetime: >10 years. | WCAP-CSGP MLCCs 50 V(DC) | 10 nF | ±10% | 50 | 0805 | -55 °C up to +125 °C | – | 2.5 | 10 GΩ | X7R Class II | 2 | 1.25 | 0.8 | 0.5 | 7" Tape & Reel | – | – | – | – | – | – | – | – | – | – | – | – | – | ||
| 885012207094 | SPEC | 9 files | Active i| Production is active. Expected lifetime: >10 years. | WCAP-CSGP MLCCs 50 V(DC) | 22 nF | ±10% | 50 | 0805 | -55 °C up to +125 °C | – | 2.5 | 10 GΩ | X7R Class II | 2 | 1.25 | 0.8 | 0.5 | 7" Tape & Reel | – | – | – | – | – | – | – | – | – | – | – | – | – | ||
| 885012206095 | SPEC | 9 files | Active i| Production is active. Expected lifetime: >10 years. | WCAP-CSGP MLCCs 50 V(DC) | 100 nF | ±10% | 50 | 0603 | -55 °C up to +125 °C | – | 3 | 5 GΩ | X7R Class II | 1.6 | 0.8 | 0.8 | 0.4 | 7" Tape & Reel | – | – | – | – | – | – | – | – | – | – | – | – | – | ||
 | 74479774222 | SPEC | 9 files | Active i| Production is active. Expected lifetime: >10 years. | WE-PMI Power Multilayer Inductor | – | – | – | 0805 | -40 °C up to +125 °C | 15 | – | – | – | 2 | 1.25 | 0.5 | – | – | 2.2 | 500 | 700 | 250 | 340 | 40 | Low Profile | 2 | – | – | – | – | – | ||
 | 687616100002 | SPEC | – | 2 files | Active i| Production is active. Expected lifetime: >10 years. | WR-FFC Flat Flexible Cable - 0.50 mm | – | – | – | – | -30 °C up to +105 °C | – | – | 1000 MΩ/m | – | 100 | 8.5 | – | – | Bag | – | – | – | – | – | – | Type 1 | 16 | 0.5 | 0.5 | 60 | 20 | max. | |
 | 687116149022 | SPEC | – | 7 files | Active i| Production is active. Expected lifetime: >10 years. | WR-FPC Zero Insertion Force Connectors - 0.50mm | – | – | – | – | -40 °C up to +105 °C | – | – | 500 MΩ | – | 12.1 | – | – | – | Tape and Reel | – | – | – | – | – | – | Horizontal | 16 | 0.5 | 0.5 | 50 | 50 | max. |
